There is a distinct moment of panic known only to smart glasses owners: You pick up your frames to capture a moment, join a meeting, or invoke Meta AI, and nothing happens. Or worse, the tiny indicator light starts flashing an unfamiliar color combination.

Because smart glasses pack cameras, speakers, microphones, and an entire AI operating system into a standard optical frame footprint, they are highly sensitive to power delivery, software syncing, and environment changes. When something stops working, it is rarely "bricked"—it is usually just experiencing a micro-alignment issue, an app sync lag, or a standard safety pause.

As a high-volume traffic magnet, this guide acts as your ultimate "decoder ring" for every flashing sequence across your smart glasses, the official charging case, and your PrismXR Carina C2 premium power kit. Bookmark this page—you will need it.

Part 1: The Eyewear Decoder Ring (Inward-Facing Notification LED)

The tiny, inward-facing notification LED located near your right frame hinge changes color to report power state, phone connections, calling, and capture errors.

Part 2: The Charging Case Decoder Ring (Official Standards)

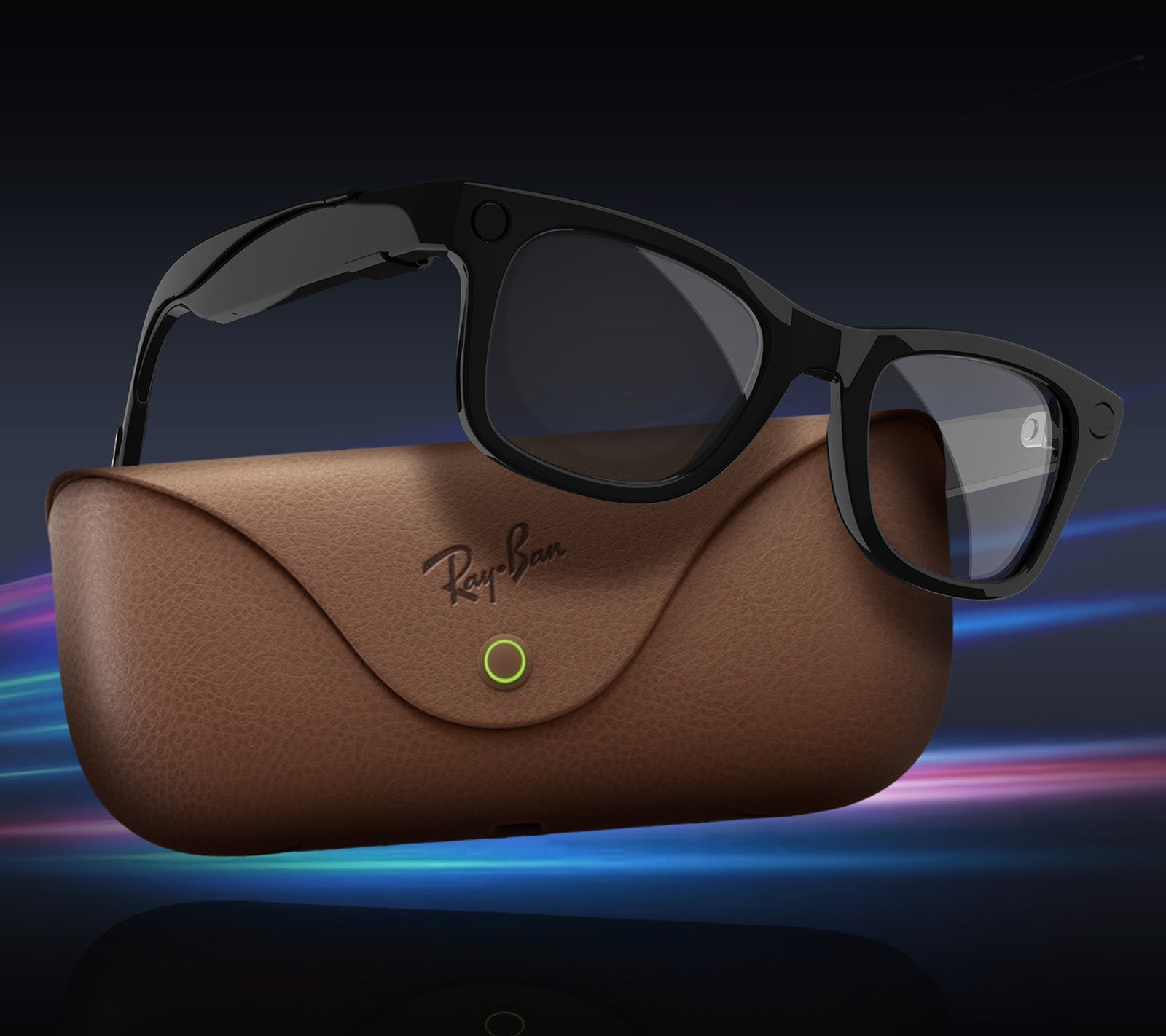

The official Ray-Ban Meta charging case has two separate LED indicators: an Inner LED located inside near the nose bridge, and an Outer LED on the front latch or near the USB-C port.

The Inner LED (Glasses Dock Status)

This light turns on briefly when you dock your glasses to let you know if the proprietary pins have established a clean electrical handshake.

The Outer LED (Case Battery Status)

This light turns on when you open or close the case lid or pull out the USB-C charging cord.

Part 3: The Carina C2 Premium Module Decoder Ring

When you upgrade to the PrismXR Carina C2 wearable power system, the dynamic charging chip inside handles power management automatically. However, our engineering team wants you to understand how it reports state changes to clear up any confusion:

• Solid Orange Module Light: Currently charging your frames.
• Module Light Turns Off: Charging is complete; your batteries are fully topped up.
• The 3-Second Charging Case LED Delay: If you notice up to a 3-second delay on your official case indicator when inserting the C2 module, this is completely normal and intentional. The C2’s patented smart algorithm is continuously tracking and certifying power resistance to ensure safe, stable delivery.
• Repeated Low Battery Audio Beeps While Docked: If your glasses drop below 15% and you connect the Carina C2, you might hear the low battery alert beep more than once. This occurs because the C2 dynamically pauses and automatically resumes power flow to throttle initial thermal spikes safely. It will not stop your charge or harm long-term battery lifespans.

Advanced Hardware Troubleshooting Matrix

If your glasses are completely unresponsive or refusing to accept a charge, use this step-by-step diagnostic checklist engineered by our core product development team.

Issue 1: My Glasses Won't Power On At All

This issue is almost always unrelated to your Carina C2 power pack. Leave your C2 module attached and try these four diagnostic steps sequentially:

1. The Pure Dock Reset: Ensure your charging case has plenty of juice. Slide the physical power toggle on your glasses to the OFF position. Clean the metallic contact surfaces thoroughly, place the frames firmly into the official case, and leave them completely undisturbed for a minimum of 30 minutes before trying to flip the power toggle on.
2. The Hardware Forced Hard Reset: Close the temple arms completely. Press the top capture button exactly five times in rapid succession until the frame LED turns solid orange. Immediately press and hold the button down until the LED begins to blink rapidly. Once the flashing stops, your hardware reset is successful.
3. The 72-Hour Full-Drain Loop: If an app-level software freeze has locked the screen or motherboard, expand the temples, turn the physical power switch ON, and leave the glasses sitting completely untouched for over 72 hours. This forces the internal battery to completely drain down to absolute zero, breaking the software loop. Afterward, charge them in the case for 30 minutes, and power them back up.
4. The Delamination Check: Carefully examine the plastic framing surrounding the power toggle or capture button on the right temple arm. If you observe any minor plastic lifting or loose gaps due to everyday wear and tear, press the plastic down firmly with your fingers against the internal frame structure and try sliding the power button again.

Issue 2: Flashing Red Case Lights or Charging Disconnects

If your case starts flashing red or the Carina C2 orange light remains on indefinitely without changing state, it is typically an environment-level connection failure.

1. Debris and Oil Shielding: Microscopic amounts of skin oil, pocket lint, or dust on the magnetic pins will break the charging sequence. Take a dry, soft microfiber cloth or cotton swab and gently rub down the metal contacts on your Temple Mount, the Nose Bridge Contact Mount, and the interior pins of the charging case.
2. The Condensation Trap: If you use your smart eyewear while exercising, running, or vlogging outdoors, microscopic condensation or humidity can accumulate in the tight gap between the Carina C2 structure and the glasses' frame. Gently absorb any dampness with a clean tissue, then run a hairdryer on its cool setting directly over the contact area for 2–3 minutes to pull out hidden moisture.
3. The Wattage Bottleneck: If your C2 orange light stays on all day while docked in the case, your wall charging block likely lacks the output capacity to power both internal systems simultaneously. Swap out your USB charging brick for a high-wattage modern block (such as a 20W smartphone fast charger) to ensure both modules receive sufficient energy to complete their cycles.

Why Wearable Power Architecture Matters

Over time, throwing your smart glasses into a standard case forces aggressive, high-heat charge cycles that speed up internal battery degradation. The reason we designed the patented Carina C2 Smart Algorithm is to insulate your frames from this exact wear.

When connected, the C2 acts as an external shield: it directly handles the heavy electrical lifting required to run your AI processing, open-ear audio, and video rendering, while gently topping off your glasses' internal battery at a safe, cool, and steady pace. It prevents constant charge-and-discharge exhaustion, keeping your primary $300+$ investment running beautifully for years to come.

Have you run into a strange LED flashing code that isn't listed in our matrix? Drop your specific symptom or pattern in the comments below, and our engineering team will help you diagnose it live!
